φ377×16 Steel Tube Machine;ZTFIV;ZTZG

Short Description:

ERW377 high frequency longitudinal welded pipe production line / pipe making machine / tube mill is designed to produce welded pipes of 165mm-377mm in OD and 4.0mm-14.0mm in wall thickness, as well as corresponding square and rectangular pipe.

We can design and manufacture pipe making machine according to customers’ requirements.

Message Contact Us

Product Detail

PRODUCT MODEL LIST

Product Tags

Description

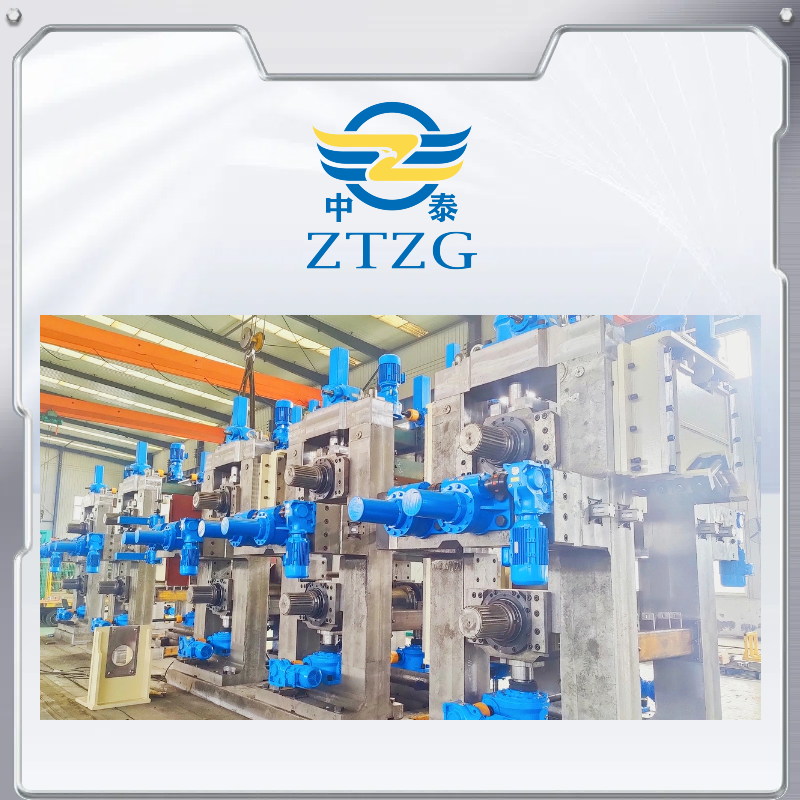

ERW tube mill is also called high-frequency longitudinal welded pipe production line. Suitable materials are hot-rolled or cold-rolled strip coils such as plain carbon steel and high-strength steel, etc.

The strip steel is unrolled by the uncoiler, and then enters the accumulator storage after passing through the shear butt welding machine. The strip steel is extruded by rollers and divided into two parts: break-down section and fine pass section. After high-frequency induction welding and sizing part, output the required length of pipe, cut off by flying saw, and finally stack and pack the steel pipe. This production line is a comprehensive complete production line for continuous welding of steel strips into pipes, mainly composed of uncoiler, shear & end welder, accumulator, forming & sizing machine, H.F welder, flying saw, stacking & packing machine.

If there are special purposes or requirements for steel pipes, it is necessary to add testing equipment, such as hydraulic testing machine, intermediate frequency annealing machine, ultrasonic flaw detection machine, etc.

High frequency welded pipe production line is mainly used for continuous production of straight seam welded pipe. It adopts high-frequency induction welding, which can not only produce round pipe but also corresponding square pipe and special-shaped pipes. The high-frequency pipe welding machine is mainly used for the production of various iron pipes, construction pipes, structural pipes, water pipes, oil pipes, API Pipes, and so on.

Technical flow

Scrolling up→ Uncoiling → Shear and Welding→ Spiral accumulator→ Forming → H.F. induction welding→ External burr removing→ Cooling → Sizing→ Flying saw → Run out table →Inspecting→ Packing→ Warehouse

Forming process

Round pipe	Cold roll forming process	Good roller design
Round pipe	ZTF forming process	Save alt least 60% roller cost with electric control adjustment Read More
Square & rectangular tube	General round-to-square process	Stable forming process
	Round-to-square with Turks head	Good pipe quality
	Process of directly square-to-square(DSS)	One set of roller can produce all tubes with electric control and automatic adjustment Read More

Basic Technical Information of Welded Pipe Production Line

Product & Yield	Round Pipe	165mm-377mm Thickness: 4.0mm-14.0mm
	Square & Rectangle Tube	130mm×130mm -280mm×280mm Thickness: 4.0mm-14.0mm
	Length	6m-12m Length Tolerance: ±3mm
	Production Speed	35 m/min
	Production Capacity	120,000ton/year
Consumption	Mill installed Capacity	580 kw
	Line Area	145m(length) ×13m (width)
	Worker	6-8 workers
Raw Material	Material	Carbon steel coil Q235B(ASTM GR·D,σs 230)
	Width	520mm-1190mm Thickness: 4.0mm-14.0mm
	Coil ID	580-760mm
	Coil OD	Max 2100mm
	Coil Weight	25.0t

Advantage

When producing round pipe, it can utilize ZTF forming technique

When producing square & rectangular tube, it can utilize directly square-square (DSS) technique

Products: architectural structure pipes, API pipes, tower footing tubes, automobile beam steel pipe and other products.

More Products

https://www.ztzgsteeltech.com/oil-gas-transportapi-pipe-production-line-product/

Previous: ERW325x14 Steel Tube Machine;ZTFIV;ZTZG

Next: φ406×16 Steel Tube Machine;ZTFIV;ZTZG

ERW TUBE MILL LINE
Model	Round pipe mm	Square pipe mm	Thickness mm	Working spead m/min
ERW20	Ф8-Ф20	6x6-15×15	0.3-1.5	120	Read More
ERW32	Ф10-Ф32	10×10-25×25	0.5-2.0	120	Read More
ERW50	Ф20-Ф50	15×15-40×40	0.8-3.0	120	Read More
ERW76	Ф32-Ф76	25×25-60×60	1.2-4.0	120	Read More
ERW89	Ф42-Ф89	35×35-70×70	1.5-4.5	110	Read More
ERW114	Ф48-Ф114	40×40-90×90	1.5-4.5	65	Read More
ERW140	Ф60-Ф140	50×50-110×110	2.0-5.0	60	Read More
ERW165	Ф76-Ф165	60×60-130×130	2.0-6.0	50	Read More
ERW219	Ф89-Ф219	70×70-170×170	2.0-8.0	50	Read More
ERW273	Ф114-Ф273	90×90-210×210	3.0-10.0	45	Read More
ERW325	Ф140-Ф325	110×110-250×250	4.0-12.7	40	Read More
ERW377	Ф165-Ф377	130×130-280×280	4.0-14.0	35	Read More
ERW406	Ф219-Ф406	170×170-330×330	6.0-16.0	30	Read More
ERW508	Ф273-Ф508	210×210-400×400	6.0-18.0	25	Read More
ERW660	Ф325-Ф660	250×250-500×500	6.0-20.0	20	Read More
ERW720	Ф355-Ф720	300×300-600×600	6.0-22.0	20	Read More

STAINLESS STEEL PIPE PRODUCTION LINE
Model	Round pipe mm	Square pipe mm	Thickness mm	Working speed m/min
SS25	Ф6-Ф25	5×5-20×20	0.2-0.8	10	Read More
SS32	Ф6-Ф32	5×5-25×25	0.2-1.0	10	Read More
SS51	Ф9-Ф51	7×7-40×40	0.2-1.5	10	Read More
SS64	Ф12-Ф64	10×10-50×50	0.3-2.0	10	Read More
SS76	Ф25-Ф76	20×20-60×60	0.3-2.0	10	Read More
SS114	Ф38-Ф114	30×30-90×90	0.4-2.5	10	Read More
SS168	Ф76-Ф168	60×60-130×130	1.0-3.5	10	Read More
SS219	Ф114-Ф219	90×90-170×170	1.0-4.0	10	Read More
SS325	Ф219-Ф325	170×170-250×250	2.0-8.0	3	Read More
SS426	Ф219-Ф426	170×170-330×330	3.0-10.0	3	Read More
SS508	Ф273-Ф508	210×210-400×400	4.0-12.0	3	Read More
SS862	Ф508-Ф862	400×400-600×600	6.0-16.0	2	Read More
